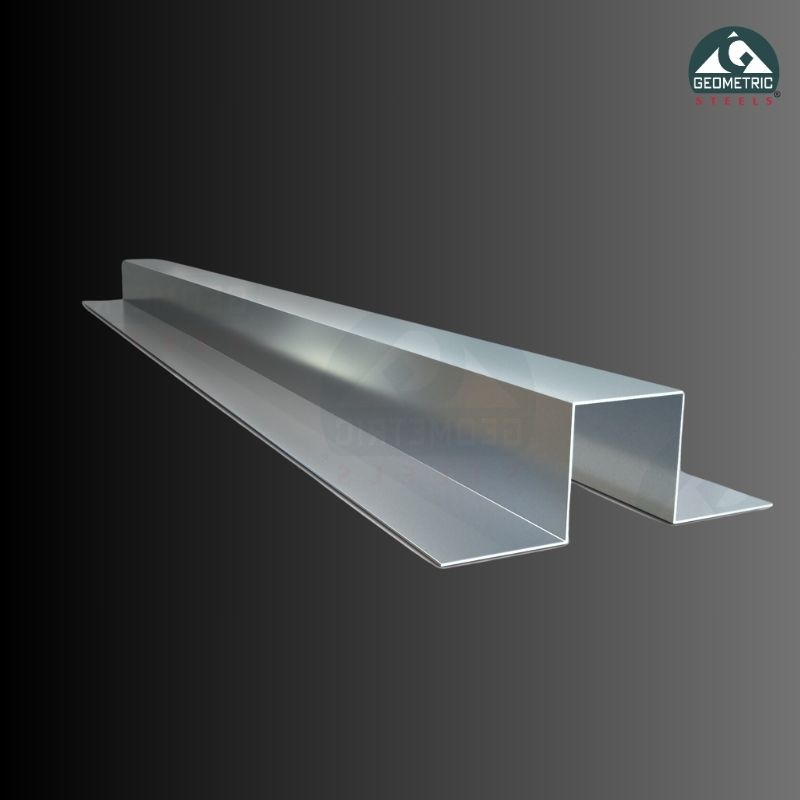

Hat section purlin consists of two outward flanges and two vertical sides of the hat. Geometric Steel manufactures top hats for a variety of residential, commercial, and industrial purposes. Manufactured from high tensile galvanised steel (240Mpa and 350Mpa), Galvalume G550, AZ150, and CR in standard lengths up to 6.1 metres, with rib stiffener option.

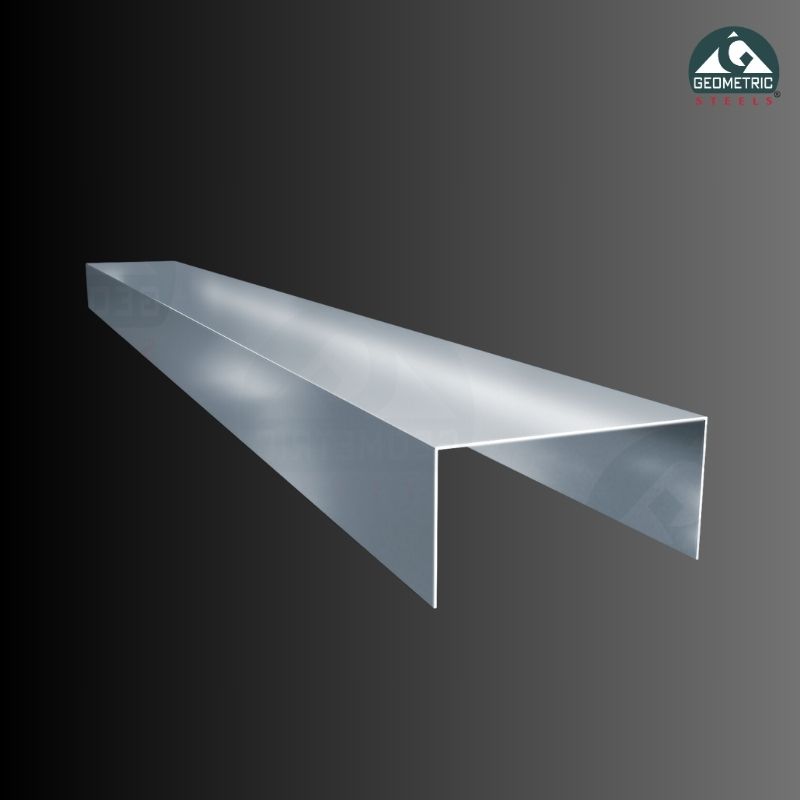

U sections are frequently used in polyhouses and other specialised applications. This section is manufactured in the most advanced plant in Kurkumbh in thicknesses ranging from 1.00 mm to 3.00 mm, as specified by the customer. Cold roll forming is an energy-efficient and material-saving technology that is commonly used in the manufacture of C purlins and Z purlins and U sections.

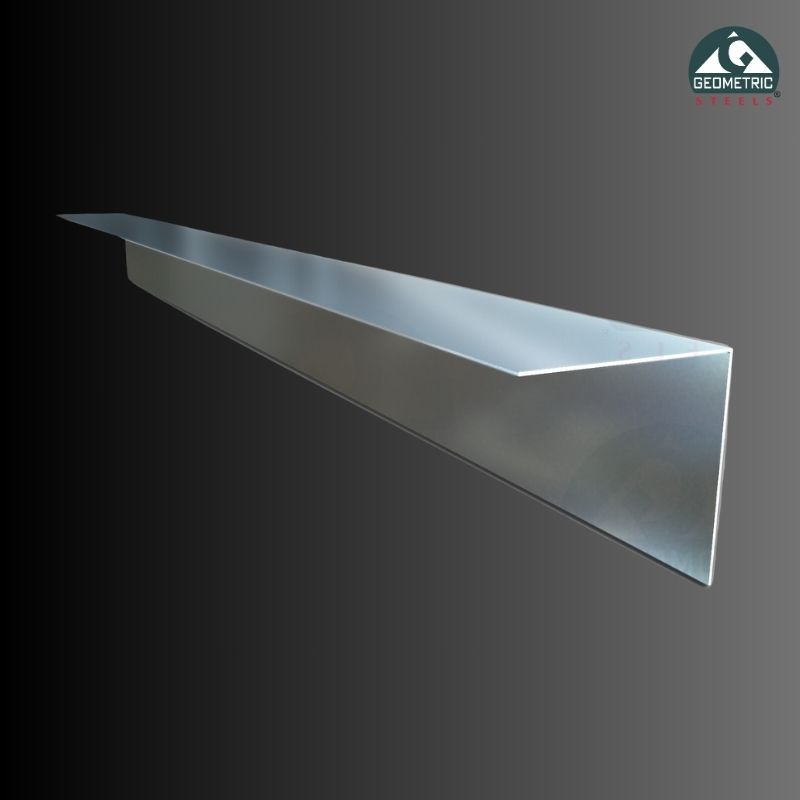

L section: The purlin thickness and height are determined by the span length and load for a pre-engineered construction. Such a purlin is necessary for the gable ends. We supply purlins up to 6 metres in length and thickness.

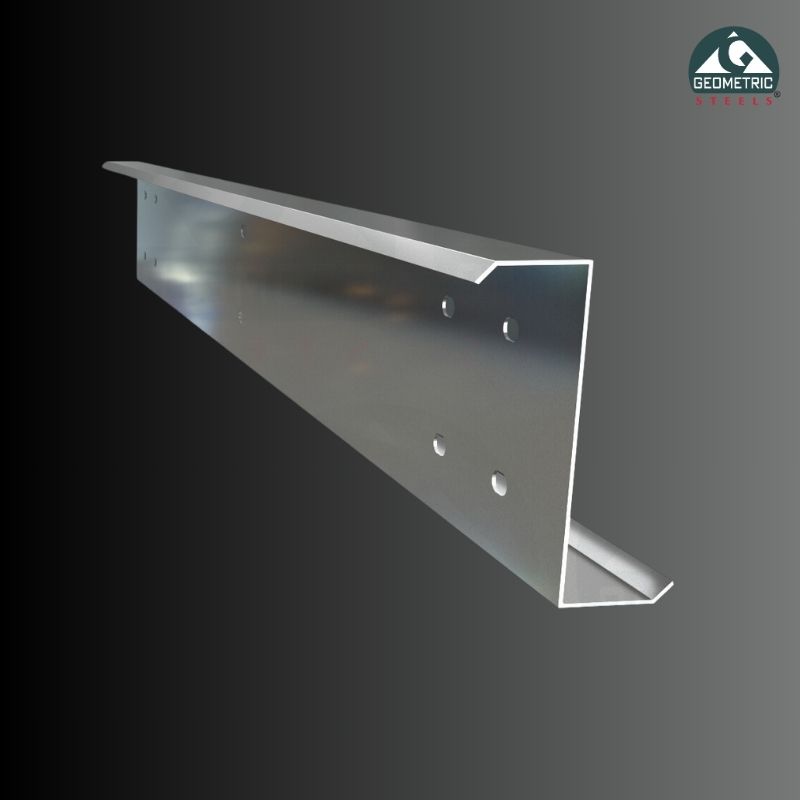

Z purlins are ideal for providing lengthy spans between portal frames on an industrial building. Z Purlins are available in a variety of sizes and material strengths to meet the design requirements of your structure. Z purlins are composed of GI, CR, and HR steel and are roll formed to length with holes punched to your specifications. C & Z Purlins result in cost savings of up to 50% in structural steels when compared to standard sections such as Angle, Channel, and Hollow Section. It is available in conventional lengths, similar to round or square pipe, so no material is wasted.

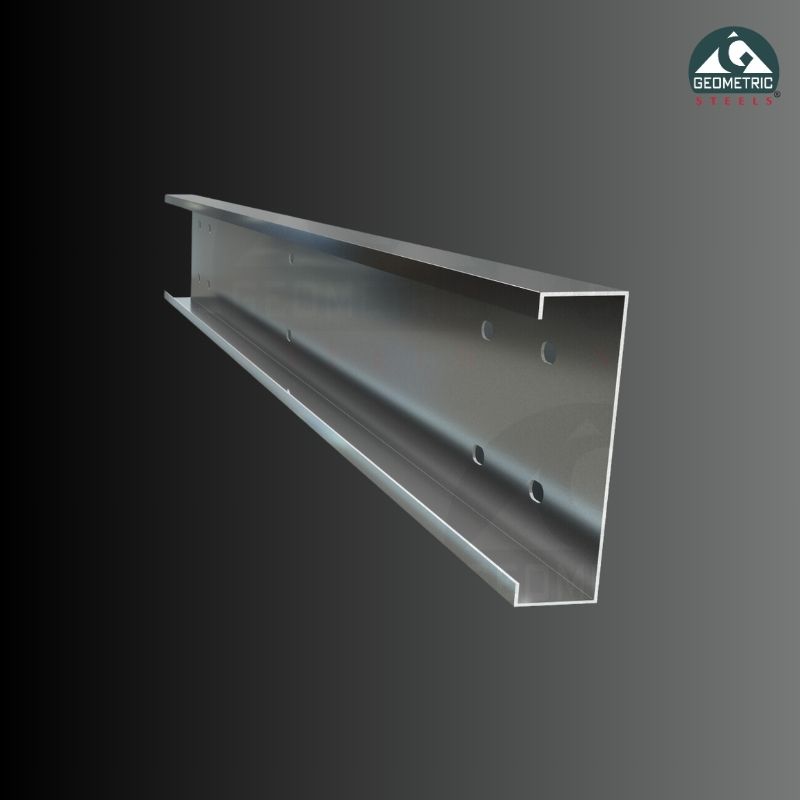

Purlin C Purlins are available in a variety of sizes and material strengths (for example, 240 Mpa and 350 Mpa) to meet your building's design specifications. Purlins are perpendicular structural support members in the slope of the roof, with cladding installed on the principal rafter. These roof purlins are widely employed in large-scale infrastructure projects, factories, and warehouses. C purlins are manufactured from quality steel as follows 1. Galvanized C purlin and Z purlin in 240 Mpa and 80 Gsm 2. Galvanized C and Z purlin in 345 Mpa and 120 Gsm 3. C purlin and Z purlin are customized coating and yield strength of steel. 4. Roll formed to the desired length with factory-made punching according to your requirements.
